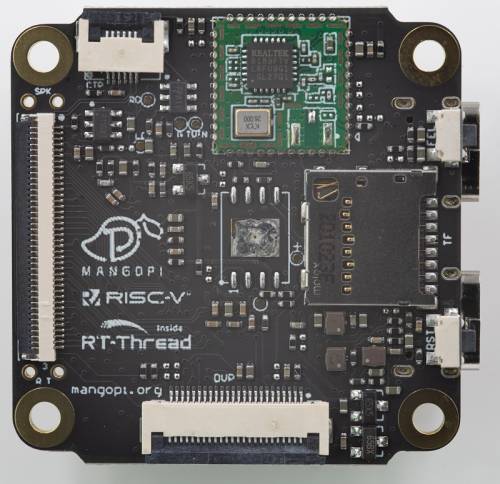

This micro development board is specially designed to run Linux. Despite a mini body, it has all the vital functions. Equipped with D1s(RISC-V core) as the maincontroller chip, the board offers various commonly-used peripheral ports: GPIO, I2C & SPI, SDIO, Audio port(record, play), Video(RGB666 Display, touch, DVP, DSI and LVDS), USB Host, OTG, etc. Besides, the board comes with a built-in 64MB DDR and onboard WiFi, which fully supports Linux ecology and running complete Python.

  • D1s with 64MB DDR, RISC-V core up to 1GHz
  • USB-OTG Type-C
  • USB-HOST Type-C
  • 22Pin expand x2(all pins out)
  • TF card
  • RTL8189F WiFi or other WiFi/BT module
  • 15Pins DSI FPC connector
  • 40Pins RGB FPC connector
  • 6Pins CTP FPC connector
  • MIC x 1
  • 24Pins DVP FPC connector
  • Fel,reset button
  • 4x4cm size

  • MPi-MQ1: basic version, no NAND FLASH, no WiFi
  • MPi-MQ1W:WiFi version, no NAND FLASH, with WiFi
  • MPi-MQ-GW2:Dual-LAN (PoP)

D1s Datasheet: f133_datasheet_v1.0.pdf

RISC-V/C906 core: c906_r1s0
