This micro development board is specially designed to run Tina-Linux/Debian. Despite a mini body, it has all the vital functions. Equipped with D1(RISC-V core) as the maincontroller chip, the board offers various commonly-used peripheral ports: GPIO, I2C & SPI, SDIO, Audio port(record, play), Video(touch, HDMI, DVP, DSI and LVDS), USB Host, OTG, etc. Besides, the board comes with a built-in 512MB/1GB DDR and onboard WiFi/BT, which fully supports Linux ecology and running complete Python.

• MPi-MQ1PL：WiFi+BT，512MB DRAM
• MPi-MQ1PH：WiFi+BT，1GB DRAM

• V1.0, 2022.01.05, first release, Green PCB (mini-HDMI error)
• V1.1, 2022.01.17, fix HDMI, Green PCB

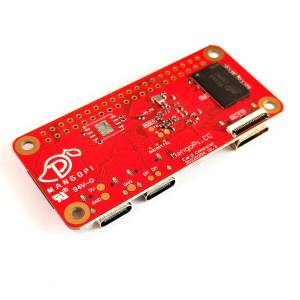

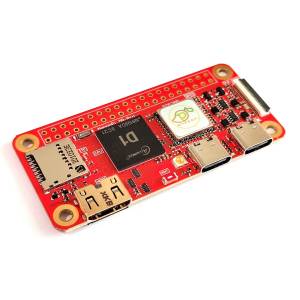

• V1.2, 2022.02.04, small batch， Red PCB

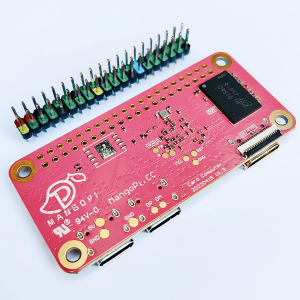

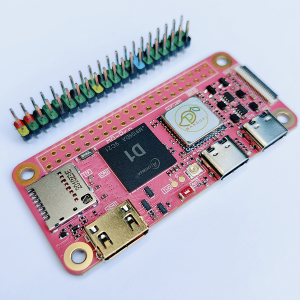

• V1.3, 2022.04.15, small batch, Pink PCB

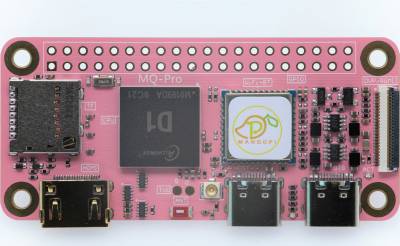

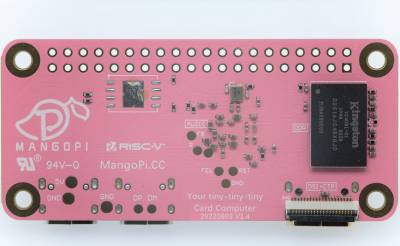

• V1.4, 2022.06.27, mass production, Pink PCB, hole filled resin, Antenna trace optimization

• D1, C906 Core, RISC-V core up to 1GHz
• 512MB or 1GB DDR3/DDR3L
• USB-OTG Type-C
• USB-HOST Type-C
• 40Pin RPI-expand
• 24Pin DVP/RGMII connector
• mini HDMI connector
• TF card
• RTL8723ds WiFi/BT module
• 20Pins DSI/CTP/LVDS FPC connector
• Audio OUT pads
• onboard WiFi/BT ant
• 6.5x3cm size

• Flash TF Card (Windows) : phoenixcard4.2.8.zip
• How to use:

• USBIT (Windows): https://www.alexpage.de/usb-image-tool/download/
• Win32DiskImager (Windows): https://sourceforge.net/projects/win32diskimager/
