mcoreh616
Table of Contents

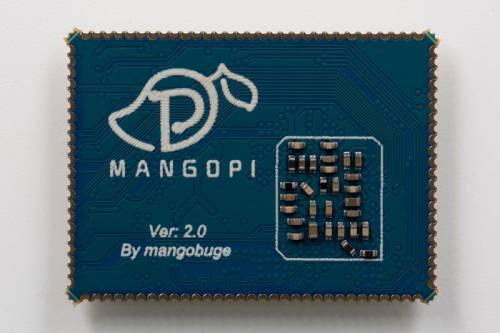

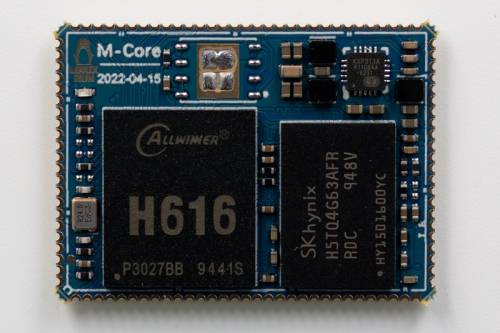

It may be the world's smallest A53 core module
We can use it to DIY all kinds of small TV/Linux/Android boxes
Spec
- H616 or H313, Quad-Core A53 up to 1.5GHz, Power-efficient ARM v8 architecture with VFPv4 FPU
- G31 GPU supports OpenGL ES1.0/2.0/3.2, Vulkan 1.1, OpenCL 2.0
- SPI-Nor/Nand Chip optional
- 1GByte / 512MByte DDR3L onboard
- AXP313A PMU
- HDMI output
- Audio output
- USB2.0 OTG x 1
- USB2.0 HOST x 3
- ephy 100Mbps and emac(RGMII)
- 3×2.2cm
mCore-H616 Resources
- Schematic: 616core-sch.pdf
- Package: 616lib.zip
- Reference design: 616-demoboard-20230108.zip

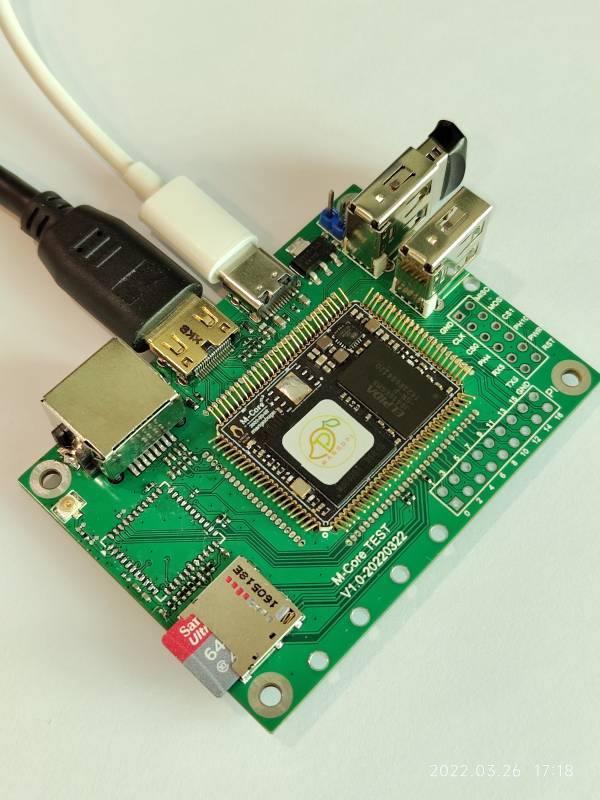

- Reference Test-Board: 616test.zip
FW&SDK
- Refer to mqquad
Develop
