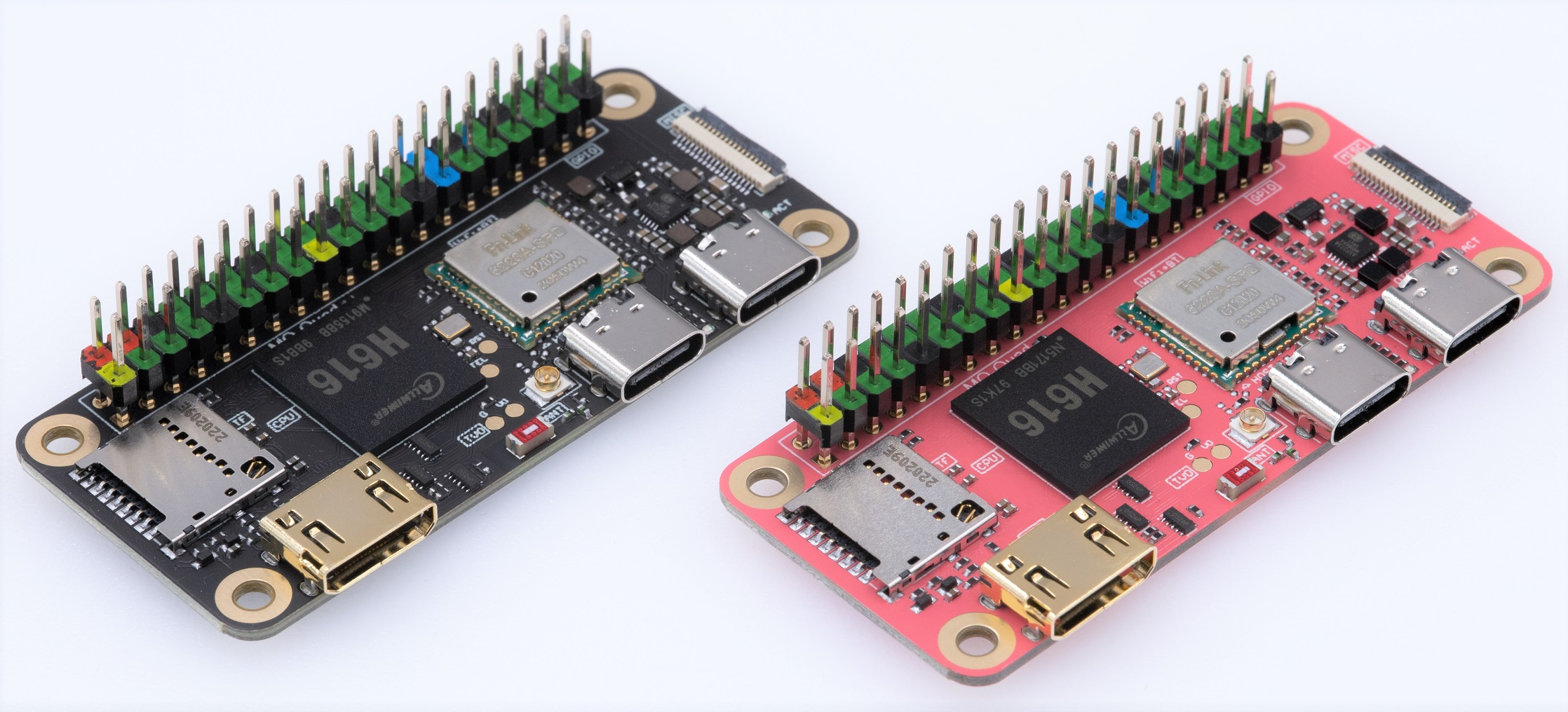

MQ-Quad has almost the same appearance as MQ-Pro, however, the main chip is H616
Version
based H616
- V1.0, Test version
- V1.1, small batch
- V1.2, Pink or Black PCB, added RST and FEL test-point
Model
- MPi-MQ1QH6：H616, WiFi+BT, 1GB DRAM
MPi-MQ1QH8：H618, WiFi+BT, 1GB DRAM
HW
- DXF: mq-quad_v1p2.zip
- PINOUT:
- H616 ds: h616_datasheet_v1.0.pdf
- H616 manual: h616_user_manual_v1.0.pdf
- AXP313a: axp313a_datasheet_v0.1-20201105.pdf
- WiFi Module(rtl8723ds chip solution ) rtl8723ds-cg_datasheet_0.92_20170804.pdf
- Shell label: 6223A-SRD fn-link_fg6223asrd_datasheet_v2.1_20210728.pdf
- Shell label: TL8723DS tl8723dsa.pdf
FW&SDK
Debian(user:root, password: orangepi)
- IMG with XFCE: from MEGA from BaiduYun
- IMG with server: https://pan.baidu.com/s/1fhCvC5CKXQaGTzshGaZgPA?pwd=1111
- Debian Source: onedrive (beta version) 百度云20230621
Android10 TV
- for H616: from MEGA from BaiduYun
- for H618: from MEGA from BaiduYun
Tina-Linux(Not recommended)
- SDK from BaiduYun Compile Host: Ubuntu14.04x64 ~ Ubuntu18.04x64
Tools
For Tina-Linux & Android
- Flash TF Card (Windows) : phoenixcard4.2.8.zip
- How to use:
For Debian & ArmBian
- USBIT (Windows): https://www.alexpage.de/usb-image-tool/download/
- Win32DiskImager (Windows): https://sourceforge.net/projects/win32diskimager/
- etcher(Win/Mac/Linux): https://www.balena.io/etcher/
